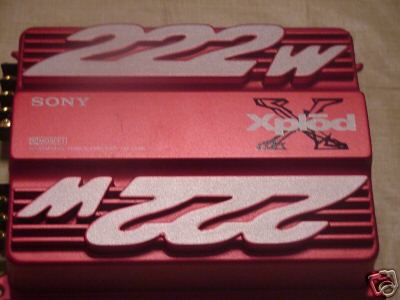

Sony Xlpod XM-222MK2 |
 |
| Circuit system OTL (output transformerless) circuit Pulse power supply | ||
| Inputs RCA pin jacks | ||
| High level input connector | ||
| Input level adjustment range | ||
| 0.3 – 6 V (RCA pin jacks) | ||
| 0.6 – 12 V (High level input) | ||
| Outputs Speaker terminals | ||
| Speaker impedance 2 – 8 Ohm (stereo) | ||
| 4 – 8 Ohm (when used as a bridging amplifier) | ||
| Maximum outputs 100 W × 2 (at 4 Ohm) 222 W (BTL, at 4 Ohm) | ||
| Rated outputs (supply voltage at 14.4 V) | ||
| 35 W × 2 (20 Hz – 20 kHz, 0.04% THD, at 4 Ohm) | ||
| 40 W × 2 (20 Hz – 20 kHz, 0.1% THD, at 2 Ohm) | ||
| 80 W (Monaural) (20 Hz – 20 kHz, 0.1% THD,at 4 Ohm) | ||
| Frequency response 5 Hz – 80 kHz ( dB) | ||
| Harmonic distortion 0.005% or less (at 1 kHz, 4 Ohm, 10 W) | ||
| Low-pass filter 80 Hz, –18 dB/oct | ||
| Power requirements 12 V DC car battery | ||
| Power supply voltage 10.5 – 16 V | ||
| Current drain at rated output : 12 A (4 Ohm, 35 W × 2) | ||
| Remote input : 1.5 mA | ||
| Dimensions Approx. 205 × 55 × 158 mm (w/h/d) not incl. | ||
| Mass Approx. 1.6 kg | ||
|
|
 |
 |
